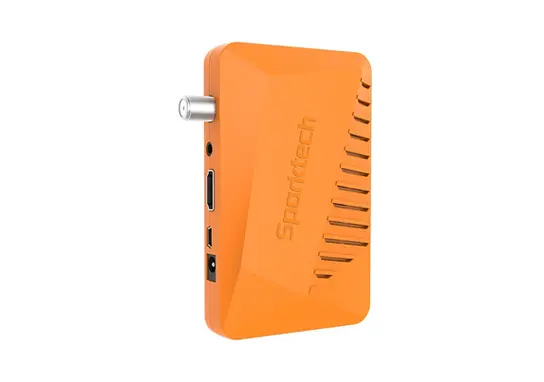

V37
Mini HD Satellite Receivers
V37 embodies the design ethos of Spark. The sleek and elegant industrial design of V37 is the epitome of timeless beauty. The immortal design can confidently be placed next to your TV and will compliment your modern living room.
Main Features
■ Digital Satellite Receiver & PVR Ready
■ H.264/MPEG4/MPEG-2 (HD/SD) Compliant
■ Blind scan and manual scan supported
■ Multi-language OSD
■ Full Support EPG (Electronic Programming Guide)
■ Recording & Playback with External USB 2.0 Devices
■ Recording and Time Shifting Simultaneously
■ 2 USB Host ports (MP3 Player & JPEG Viewer)
■ Favorite Service Groups
■ Maximum 6,000 Services (TV& Radio) Programmable
■ YouTube, Online Weather Application
■ Support USB WiFi
■ Parental Lock
■ Various Media File Format Playback
■ HDMI Video & Audio Output (576i, 576p, 720p, 1080i, 1080p)
■ CVBS Video Output, Audio L, R Output
■ Software Upgrade via USB
■ Under 1.0W Standy Power Consumption
Specifications
Front /Rear Panel
Satellite IF Input: F-type (LNB IN)
HD Output: 1080P FULL HD(Video & Audio Output)
USB: 2.0 Support: “PVR & Media Player”
IR Sensor: External Digit Screen , Mini USB Port
Main System Resource
Main Processor: GX6605S Chipset
Memory: SDRAM: 512M (DDR2) Nand Flash rom Built in
Tuner Type: DVB-S2
Physical Specification
“V37” (WxDxH): 11.5*81.3*23.5mm
Operating Temperature: 0°C ~ +45°C
Storage Temperature: -20°C ~ +70°C
General information
Scan: Super Fast Blind Scan to search all new TP, No need to add any TP
Display: Dual display – HD and SD simultaneous
Conversion: Automatic PAL/NTSC conversion
Time Shift: Record 1 Channel and Watch another channel at the same time
CH & Favorite: Big Capacity for TV and Radio channels, Automatic save for last channel
EPG & Control: Various channel editing functions (favorite, movie, lock, rename, delete and sort)
OSD: Can be sorted by alphabetic A-Z, Scramble, Favorite, Lock, Sat
Media Format: Favorite group’s selection
Others: Multi-language OSD, True color On Screen Display
Power Supply
In&Out Voltage: AC100V ~ 240V , 50/60Hz , Output DC12V 1.0A
Type: External Power Adapter
Standby Power: Under 0.8W
Power Consumption: 12W MAX
What's in the Box?
HD SATELLITE RECEIVER
Quick Guide
Power Adapter
Remote Control
External Sensor
HD Cable
What You Need?
TV
HD SATELLITE RECEIVER
Coaxial Cable
Low Noise Block
Satellite Antenna
Simple to Set Up
1-Plug it in
2-Connect to dish
3-Enjoy
