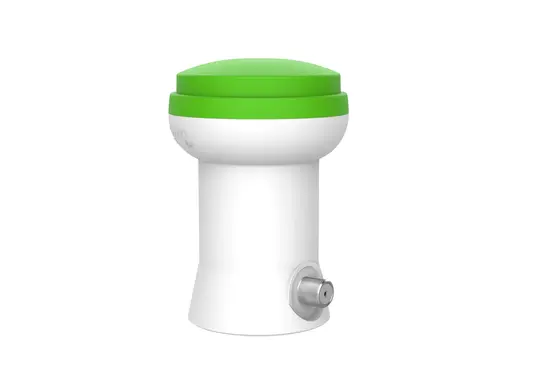

Ku Band Universal LNB
This Universal LNB is made of high - quality and durable materials and has excellent waterproof performance. It can operate stably even in harsh environments. Its performance is outstanding, with sensitive and accurate signal reception, providing a strong guarantee for stable and efficient signal transmission.
Main Features
■ 100% Water Proof
■ Developed for Long-term Reliability in the Harshest Environments
■ Ultra Compact Lightweight Designs
■ High Local Oscillator Stability
■ High Cross Polar Isolation
■ Low Power Consumption
■ Low Noise Figure
■ Low Phase Noise
Specifications
• Input Frequency Range
Low Band: 10.7 ~ 11.7GHz
High Band: 11.7 ~ 12.75GHz
• Output Frequency Range
Low Band: 950 - 2050MHz
High Band: 1100 - 2150MHz
• Input VSWR
2.5 : 1
• Output VSWR
2.5 : 1
• L.O. Frequency
Low Band: 9.75GHz
High Band: 10.6GHz
• L.O. Stability
±2MHz @ (-40c ~ 65c)
• L.O. Phase Noise
-70dBc / Hz (1KHz Offset)
-90dBc / Hz (10KHz Offset)
-110dBc / Hz (100KHz Offset)
• Conversion Gain
55 ~ 60dB (TYP)
• Gain Flatness
±0.5dB / 6MHz; ±2.5dB / In Band
• Noise Figure
0.6dB (Typ)
• Image Rejection
50dB(Typ)
• Output Power
+5dB (Min) (at 1dB gain compression)
• Cross Polarization Discrimination
23dB(Min)
• DC Supply Voltage
11 ~ 14.5V (V), 15.5 ~ 22V (H)
• Supply Current
120mA (MAX)
• Low / High Band Switching
Low Band: 0Hz
High Band: 22KHz ± 4KHz
• Output Connector
75OHMS F-F Female
• Relative Humidity
0% ~ 95%
• Operating Temperature
-40°C to +65°C
